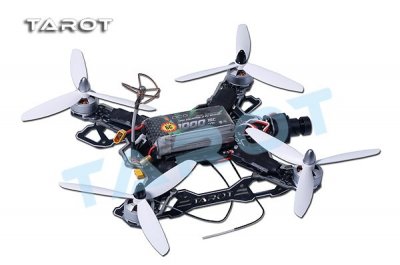

Tarot 200 FPV Mini Quad med PCB

Mini 200 Ram med PCB och landställ.

Tarot mini 200 FPV Kit is easy to assemble.

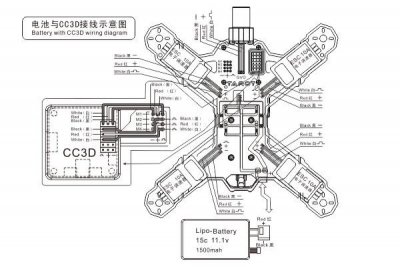

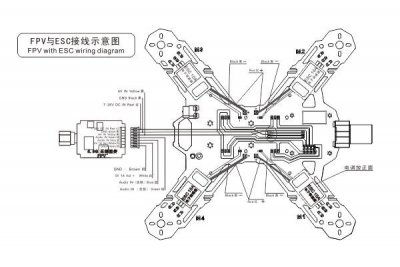

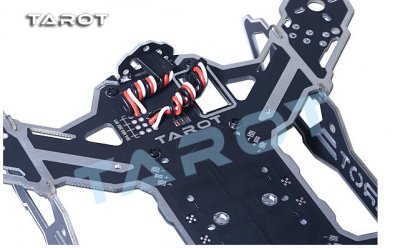

The integrated PCB can be directly connected to
electric accessories as camera, power, ESC, TX and antenna
1.6MM carbon fiber applied, the structure is simple.
Light weight, long operation time.
Flight time with 11.1V/1000MAH battery: 9 minutes.
Battery Size: No longer than 70MM(L) x 32MM(W) x 20MM(H)

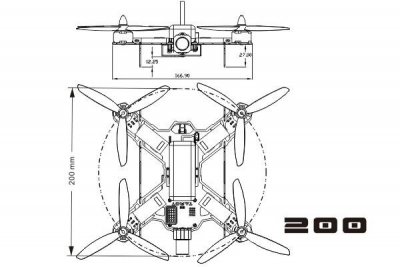

Specifications ：Wheel Base: 200MM
Neat height/ Kit Height: 30MM/ 65MM
Neat length/ Kit length: 168MM/ 185MM
Neat Width/ Kit Width: 168MM/168MM
Neat Weight: 50G

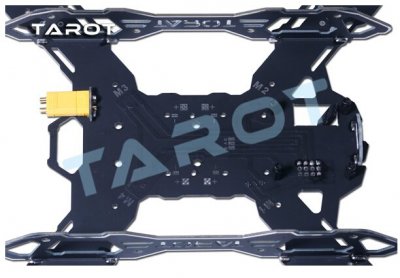

Package Contents ：Main boardx1 (167x167x1.5MM) 34.7G
Right landing gear boardx1 (168x29.5x1.2MM) 5.5G
Left landing gear boardx1 (168x29.5x1.2MM) 5.5G
Lens assembly board x1 (26x21.5x1.5MM) 0.9G
70MM servo lead x2 2.2G
XT30 connector x1 set
Battery strap x1
Battery Velcro strap x1
Instruction manual x1
