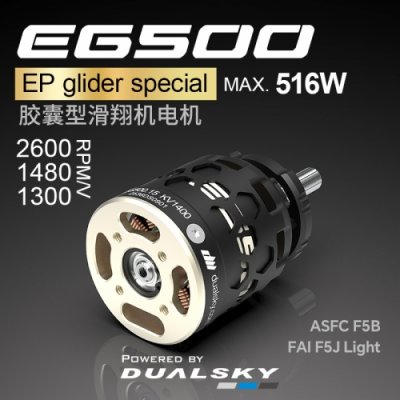

Dualsky EG500.16, KV1300, 72gr

Ny segelmotor från Dualsky!

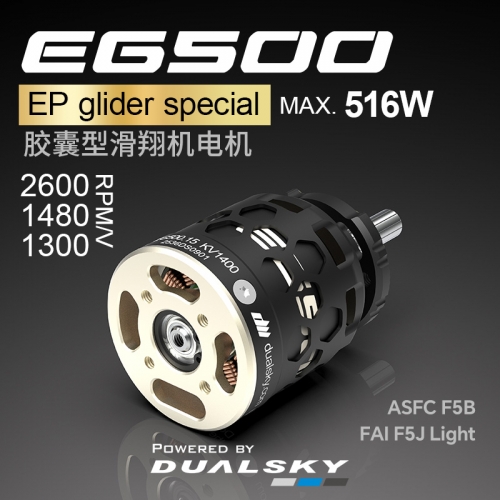

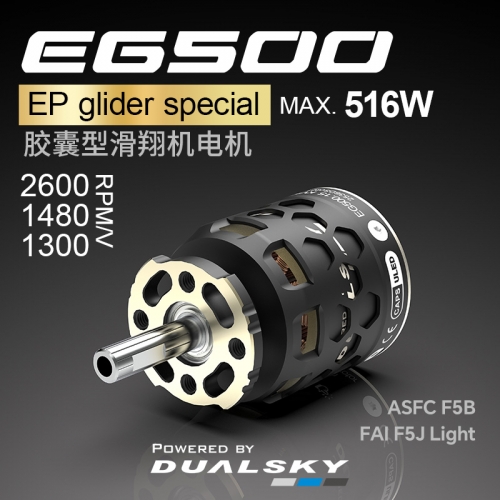

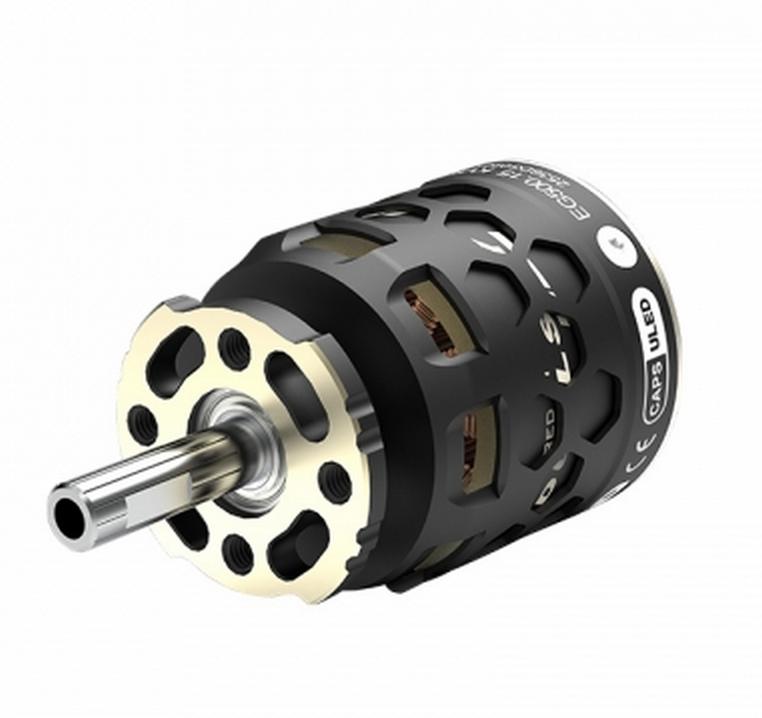

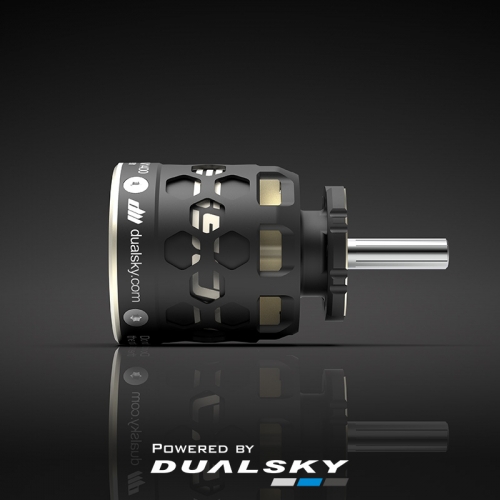

Dualsky EG500-16 1300 RPM/V 72g Cased Outrunner is a brilliant new motor for F5J and other 750g to 2kg gliders.

The 29mm outer case does not rotate and the leads are attached to the rear of the motor will not come in contact with the rotating parts.

• Max power (30s) 480W

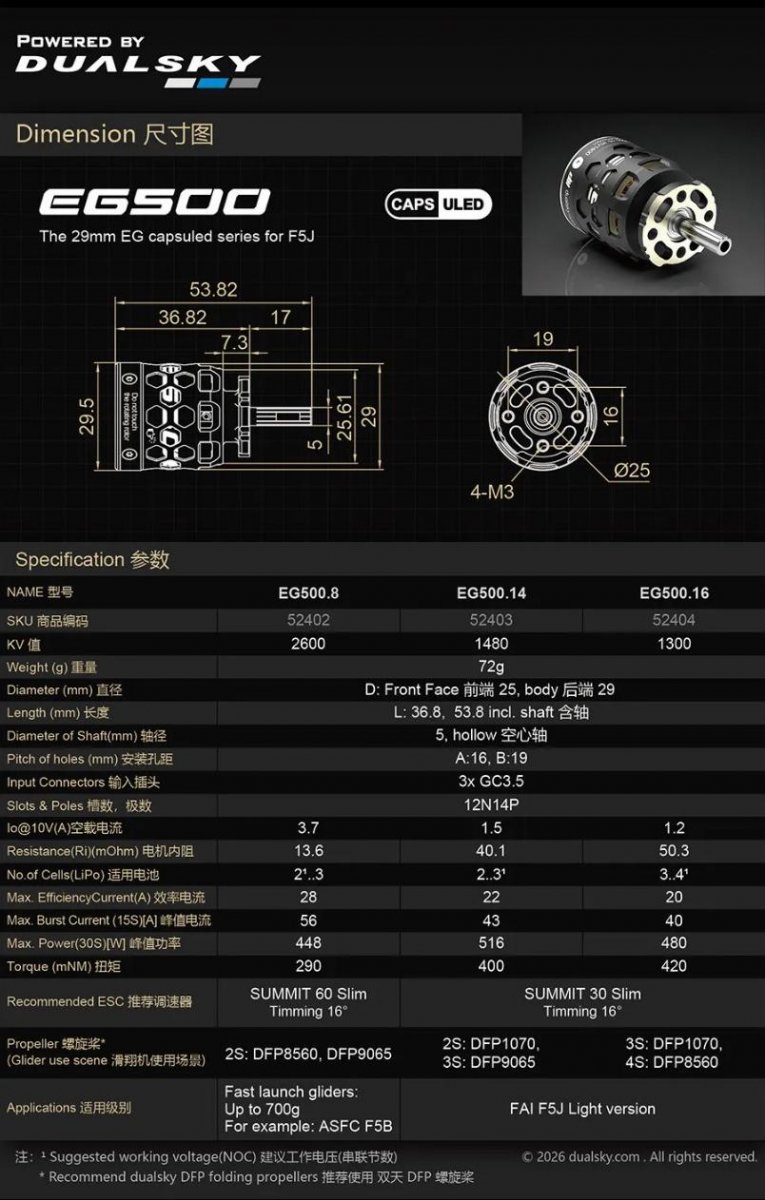

• Only 29mm diameter with a non-rotating can - will fit in small noses.
• Hollow 5mm shaft with anti-slip grooves for secure prop mounting.
• New magnetic circuit design, with 50SH magnets, increases torque and reduces weight.
• Active air cooling with internal fan.
• Honeycomb capsule shell construction reduces weight while allowing safe operation at high RPM.
• Motor mounting plate separate from windings to eliminate damage from overly long mounting screws.
• Recommended Summit Slim ESCs with 16º timing and 24kHz frequency.

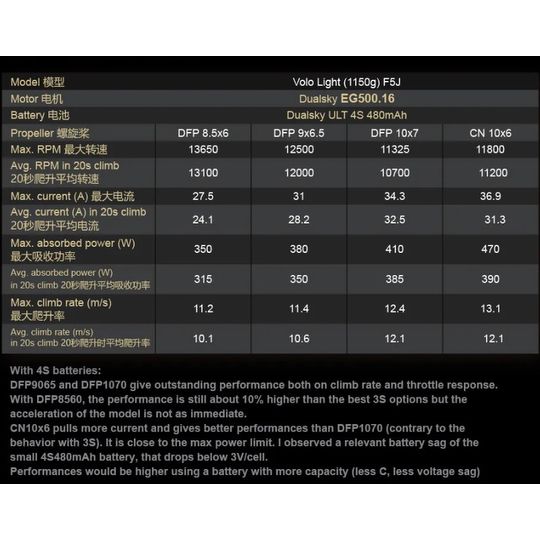

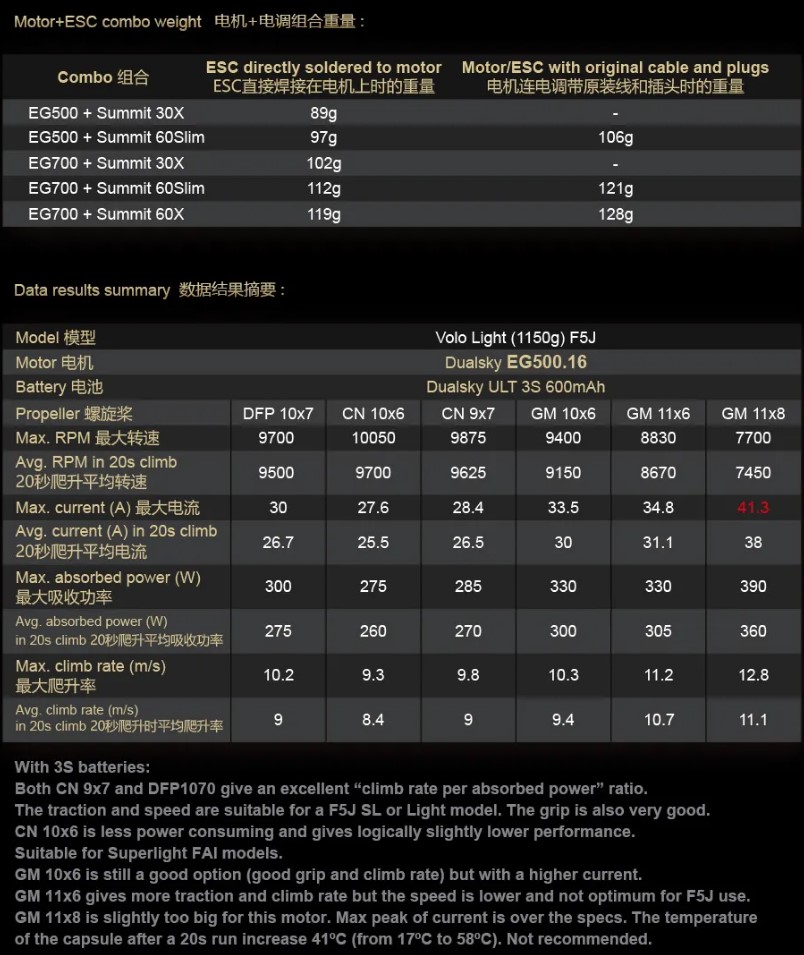

• Recommended prop:

• 3S: 10x7, 10x8, 11x6

• 4S: 8.5x6, 9x5, 9x6
